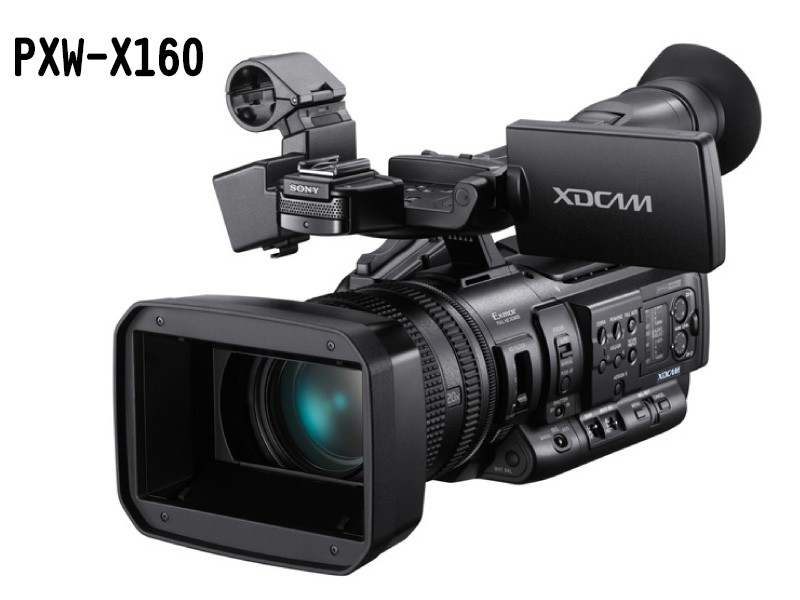

PXW-X160
XAVC 1/3吋 手持型攝影機


  • *三個1 / 2.8英寸的Exmor CMOS™全高清傳感器非常適合各種拍攝條件

  • *25倍光學變焦鏡頭,具有獨立手動變焦環和帶有物理止點的聚焦環

  • *高品質XAVC內部和XAVC登錄GOP錄製

  • *可切換錄製,更具靈活性

  • *雙SxS插槽,“同步”或“接力”錄製以及獨立錄製控制

  • *兩種ND濾鏡控制機制

  • *多接口靴(MI熱靴),可在不使用XLR電纜的情況下實現靈活的連接

  • *觀景器採用令人驚嘆的OLED技術

  • *廣泛的連接選擇

  • *鏡頭遠程控制(LANC)

Overview
Camera
Imaging Device 3 x 1/3" type Exmor CMOS sensor
Effective Pixels (H x V) 1920 x 1080
Sensitivity F9 (typical) (1920 x 1080/59.94i mode) F10 (typical) (1920 x 1080/50i mode)
S/N Ratio 60 dB (Y) (typical)
Shutter Speed 1/32 to 1/2000 sec
White Balance Present (3200K), A, B
GPS No
Wi-Fi No
NFC No
Built-In ND Filters Clear, 1/4 to 1/128 variable
Lens
Type Fixed
Zoom Ratio 25x (optical), servo/manual
Focal Length 3.7 to 92.5 mm
35mm Equivalent Focal Length 26 to 650 mm
Aperture f/1.6 to f/11, and closed
Focus Autofocus / manual focus selectable
Minimum Focus Distance Wide: 0.39" (10 mm) Tele: 31.5" (800 mm)
Image Stabilizer ON/OFF/ACTIVE selectable, shift lens
Filter Diameter 82 mm
Recording
Video Recording Format XAVC-Intra 1920x1080 59.94i: 111 Mbps max 1920x1080 50i: 112 Mbps max 1920x1080 29.97p: 111 Mbps max 1920x1080 25p: 112 Mbps max 1920x1080 23.98p: 89 Mbps max 1280x720 59.94p: 111 Mbps max 1280x720 50p: 112 Mbps max XAVC-Long 1920x1080 59.94i, 50i: 50/35/25 Mbps max 1920x1080 59.94p, 50p, 29.97p, 25p, 23.98p: 50/35 Mbps max 1280x720 59.94p, 50p: 50 Mbps max  MPEG HD422 1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 50 Mbps max 1280x720 59.94p, 50p, 29.97p, 25p, 23.98p: 50 Mbps max  MPEG HD420 1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 35Mbps max 1440x1080 59.94i, 50i: 35 Mbps max 1280x720 59.94p, 50p: 35Mbps max AVCHD 1920x1080 59.94p, 50p: 28 Mbps max  1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 24 Mbps max 1280x720 59.94p, 50p: 24 Mbps max DVCAM 720x480 59.94i: 25 Mbps 720x576 50i: 25 Mbps
Slow & Quick Motion Function 1920x1080p: Frame rate selectable 1 to 60p (depends on Recording Format) 1280x720: 1 to 120p (depends on Recording Format) Angle of view becomes smaller over 60fps
Audio Recording Format LPCM, AC-3 (AVCHD): 2 channel LPCM (XAVC/MPEG2/AVCHD/DVCAM), Dolby Digital (AVCHD): 2 channel
Interface
Input 2 x XLR 3-pin, female
Audio Output 1 x 3.5 mm
HDMI Output 1 x HDMI, Type A
SDI Output 1 x 3G-SDI, BNC connector
Composite Output / GENLOCK-IN 1 x BNC connector
USB 1 x USB 2.0, mini-B 1 x type A (for Wireless LAN module)
Timecode Input & Output 1 x BNC connector
Remote 1 x 2.5 mm
DC Input 1 x DC jack
Shoe Mounts 1 x Multi Interface shoe
Headphone Output 1 x 3.5 mm
Built-In Microphone Omni-directional stereo electret condenser microphone
Monitoring
Viewfinder 0.5" (1.27 cm) color OLED 2.36 million dots
LCD 3.5" (8.89 cm) color LCD monitor Aspect ratio: 16:9 1.56 million dots
Recording Media
Slots 2 x ExpressCard/34; supports SxS PRO+ and SxS-1 memory cards (for XAVC/MPEG2/AVCHD/DV) 1 x SD/SDHC/SDXC (for Proxy) 1 x SD/SDHC/SDXC (for Utility)
General
Power Requirements 19.5 VDC (AC Adaptor) 14.4 VDC (battery pack)
Power Consumption Approx. 19.9 W (while recording with LCD Off, EVF On when the external device connector is not used)
Battery Operating Time With battery pack BP-U90: approx. 4 hours (While recording with LCD Off, EVF On when the external device connector is not used) With battery pack BP-U60: approx. 2 hours, 35 minutes (While recording with LCD Off, EVF On when the external device connector is not used) With battery pack BP-U30: approx. 1 hours, 15 minutes (While recording with LCD Off, EVF On when the external device connector is not used)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions (WxHxD) 7.54 x 7.93 x 16.22" (19.15 x 00.15 x 41.20 cm); without protrusions
Weight Approx. 5.95 lb (2.7 kg); body only Approx. 7.05 lb (3.2 kg); with lens hood, eyecup, battery pack BP-U30, SxS memory card
