| General Specifications | Detail: |
|---|---|
| Power Requirements | DC 12 V (AC adaptor supplied) |
| Operating Temperature | 0 to +40°C (+32 to +104°F) |
| Storage Temperature | -20 to +60°C (-4 to +140°F) |
| Humidity | 20 to 90% (relative humidity) |
| Mass | 1.4 kg (3 lb 1 oz) |

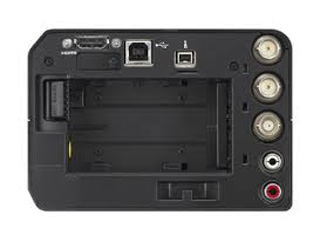

| Inputs/Outputs Specifications | Detail: |
|---|---|
| SDI Input | BNC x 1, HD/SD selectable |
| Composite Ouput | BNC (x1) |
| SDI Output | BNC (x 1), HD/SD selectable |
| HDMI | x 1, output |
| Analog Audio Output | RCA (CH-1,CH-2) |
| Headphone Output | Stereo mini jack (x 1) |
| USB | Hi-Speed USB 2.0 (x1) |
| Built-In Display Specifications | Detail: |
|---|---|

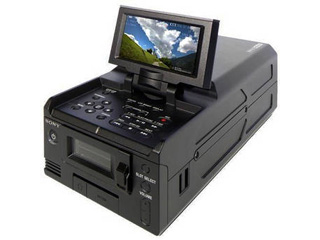

| Built-In Display | 3.5-inch type color LCD monitor |
| Built-In Audio Speaker Specifications | Detail: |
|---|---|
| Built-In Audio Speaker | x1, monaural |
